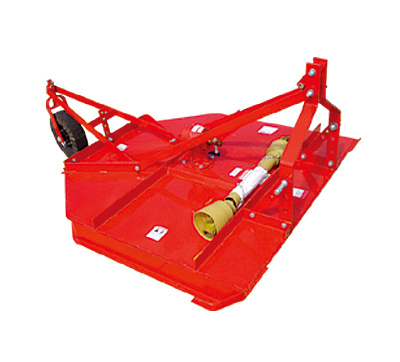

MOWER BU type

CLASSIFICATION:

The Agricultural tillage machinery are Rotary Tiller、Reversible Plow、Disc Harrow、DiscPlow、Hole Digger、Subsoiler etc.

Keywords: Mounted Bottow Plow | Land Preparation Cultivator

Message

code name
MBUR120
MBUR150
MBUR180
power
22-50HP
22-50HP
40-80HP
Mowing width
1140mm
1455mm
1735mm
Total width
1255mm
1550mm
1850mm
Grass height
20-120mm
20-120mm
20-120mm
Number of blades (pieces)
2
2
2
Blade size
475x75x12mm
620x75x12mm
790x75x12mm
Blade line speed
62m/s
60m/s
71m/s
Panel thickness
2.3mm
2.5mm
3.5mm
Tailwheel size
95mm width×390mm day
95mm widthx 390mm day
95mm widthx 390mm day
gearbox
1:1.46 ratio-Cast Iron Housing with Beveled Gers
1:1.46 ratio-Cast Iron Housing with Beveled Gers
1:1.46 ratio-Cast Iron Housing with Beveled Gers
weight
164kgs
245kgs
280kgs
Form factor
129x129x47
160x160x47
190x187x41
Quantity/FCL
80pcs/40'HQ
48pcs/40'HQ

40pcs/40'GP
