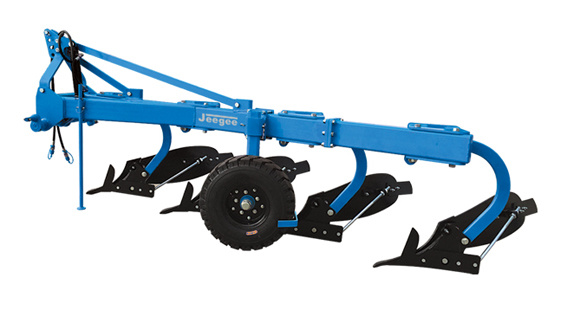

K PLOUGH
CLASSIFICATION：
The Agricultural tillage machinery are Rotary Tiller、Reversible Plow、Disc Harrow、DiscPlow、Hole Digger、Subsoiler etc.
Keywords: Mounted Bottow Plow | Land Preparation Cultivator
| Code No. | K3-35 | K4-35 |
| No.of Bottom | 3 | 4(3+1) |
| Working Width Per Bottom | 35cm | 35cm |
| Plough Beam High | 70cm | 70cm |
| Bottom to Bottom Size | 83cm | 83cm |
| Tillage Depth | 15-25cm (with depth limit) | 15-25cm (with depth limit) |
| Plough Beam Specification | 150*75*10mm | 150*75*10mm |
| Machine Working Width | 92cm | 122cm |
| (N.Weight) | 475kg | 600kg |
| Power Required | 70-90HP | 90-120HP |
