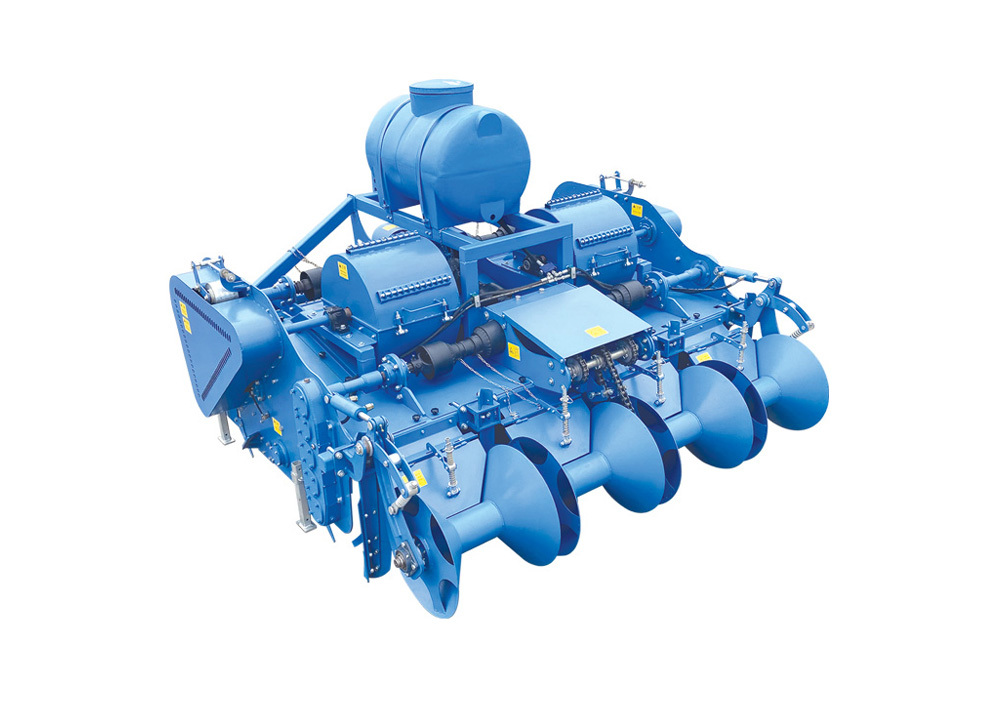

COMBINED LAND PREPARATION MACHINE
CLASSIFICATION:
The Agricultural tillage machinery are Rotary Tiller、Reversible Plow、Disc Harrow、DiscPlow、Hole Digger、Subsoiler etc.
Keywords: Mounted Bottow Plow | Land Preparation Cultivator
Model | 1ZGYHS-268 |
Dimensions (L x W x H) | 2950x3170x1490mm |
Hook up method | Suspended |
Working width | 2680mm |
line spacing | 60-67cm |
Supporting power | 200-240HP |
Drive shaft speed | 540r/min |
Tool shaft assembly transmission mode | Side drive |
Blade type | L-shaped knives, C-knives and throwing knives |
Deep loose shovel type | Column type |
Ridge riser type | Shaping the roller |
weight | 3200kg |
