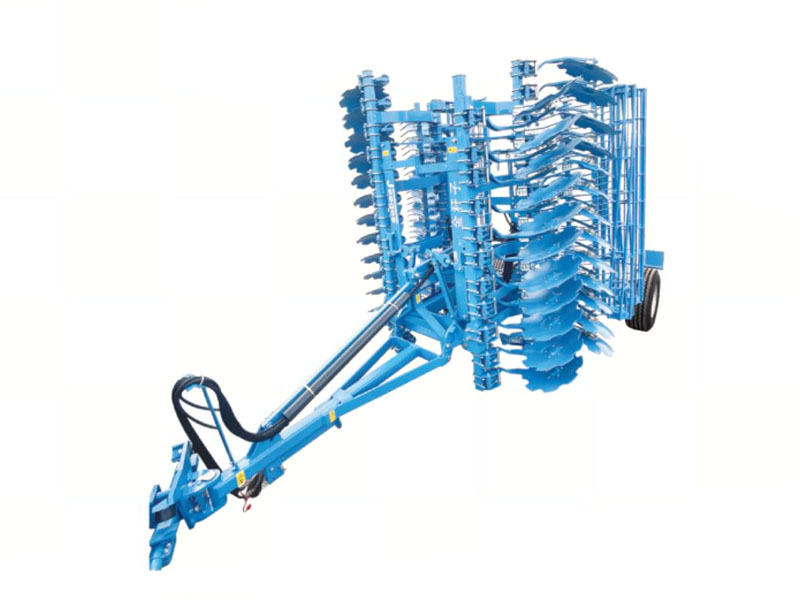

DISC HARROW
CLASSIFICATION：
The Agricultural tillage machinery are Rotary Tiller、Reversible Plow、Disc Harrow、DiscPlow、Hole Digger、Subsoiler etc.
Keywords: Mounted Bottow Plow | Land Preparation Cultivator
| Code No. | 1BYQK-400 | 1BYQK-500 | 1BYQK-600 |
| Linkage Type | Semi Mounted(Hydraulic Folding) | Semi Mounted (Hydraulic Folding) | Semi Mounted (Hydraulic Folding) |
| Working Width | 4m | 5m | 6m |
| Working Depth | 15-20cm | 15-20cm | 15-20cm |
| Disc Blade Diameter | 620mm | 620mm | 620mm |
| Disc Blade Spacing | 250mm | 250mm | 250mm |
| No.of Disc | 32pcs | 40pcs | 48pcs |
| Overall Dimension(LxWxH) | 4500x7500x1900mm | 5500x7500x1900mm | 6500x7500x1900mm |
| Power Required | 180-240HP | 200-270HP | 250-320HP |
| Weight | 4700kg | 5500kg | 6500kg |
