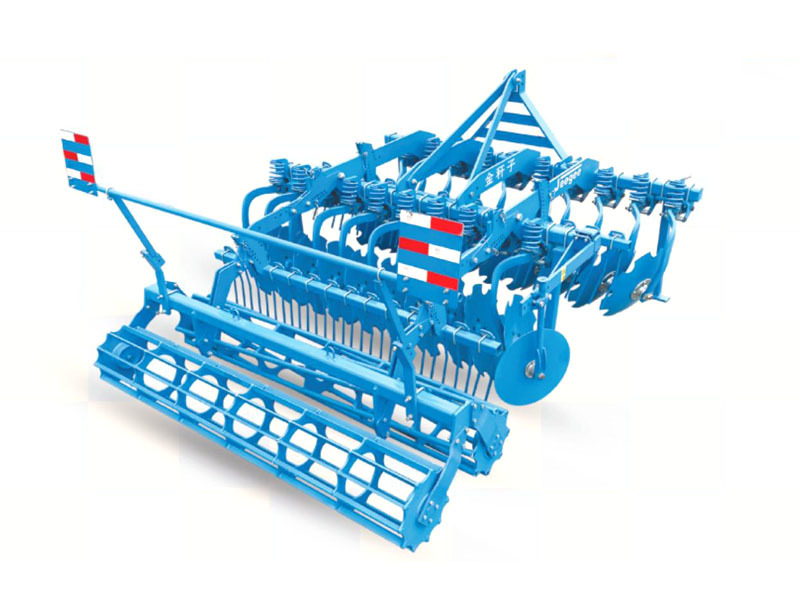

DISCHARROW
CLASSIFICATION：
The Agricultural tillage machinery are Rotary Tiller、Reversible Plow、Disc Harrow、DiscPlow、Hole Digger、Subsoiler etc.
Keywords: Mounted Bottow Plow | Land Preparation Cultivator
| Code No. | 1BYQK-250 | 1BYQK-300 |
| Linkage Type | Mounted | Mounted |
| Working Width | 2.5m | 3m |
| Working Depth | 15-20cm | 15-20cm |
| Disc Blade Diameter | 620mm | 620mm |
| Disc Blade Spacing | 250mm | 250mm |
| No.of Disc | 20 pcs | 24 pcs |
| Overall Dimension(LxWxH) | 3300x3000x1600mm | 3500x3300x1600mm |
| Power Required | 120-160HP | 140-200HP |
| Weight | 1850kg | 2200kg |
