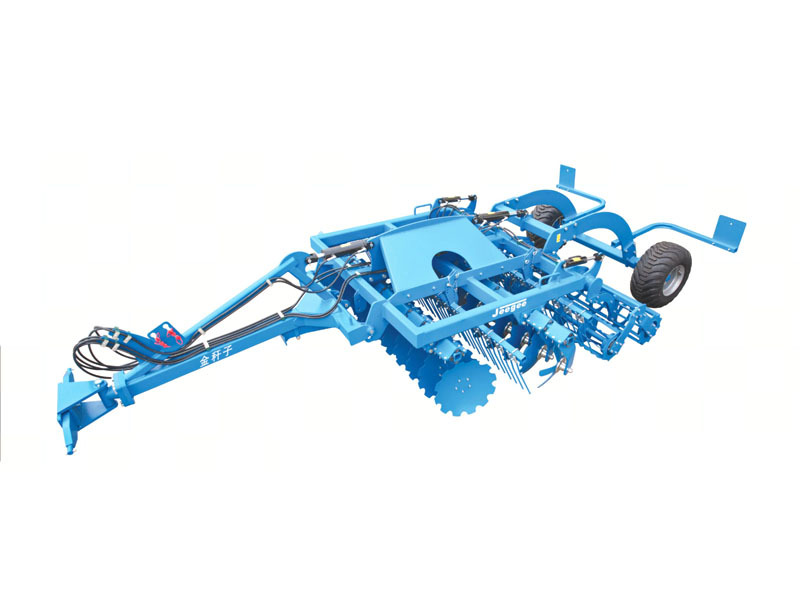

1BYQ type DISCHARROW
CLASSIFICATION：
The Agricultural tillage machinery are Rotary Tiller、Reversible Plow、Disc Harrow、DiscPlow、Hole Digger、Subsoiler etc.
Keywords: Mounted Bottow Plow | Land Preparation Cultivator
| Code No. | 1BYQ-330 | 1BYQ-380 | 1BYQ-430 | 1BYQ-530 | 1BYQ-630 |
| Working Width | 330cm | 380cm | 430cm | 530cm(折叠式) | 630cm(折叠式) |
| Working Depth | 15-20cm | 15-20cm | 15-20cm | 15-20cm | 15-20cm |
| Disc Blade Diameter | 560、610 | 560、610 | 560、610 | 560、610 | 560、610 |
| No.of Disc | 26pcs | 30pcs | 34pcs | 42pcs | 50pcs |
| Stubble Speed | 12-20KM/H | 12-20KM/H | 12-20KM/H | 12-20KM/H | 12-20KM/H |
| Matched Power | 150-180HP | 160-200HP | 200-260HP | 240-280HP | 260-315HP |
| N.Weight | 3500kg | 3800kg | 4200kg | 5500kg | 6300kg |
