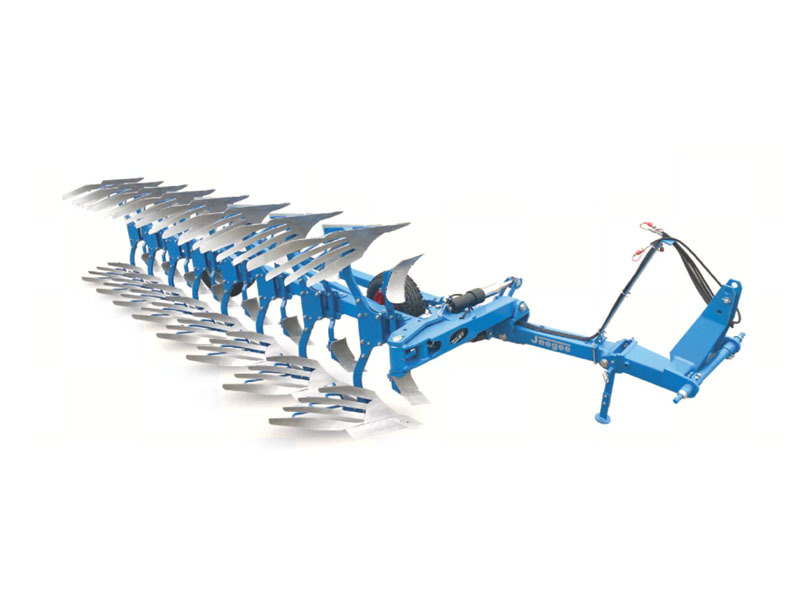

LKD REVERSIBLE PLOUGH
CLASSIFICATION：
The Agricultural tillage machinery are Rotary Tiller、Reversible Plow、Disc Harrow、DiscPlow、Hole Digger、Subsoiler etc.
Keywords: Mounted Bottow Plow | Land Preparation Cultivator
| Code No. | 1LF-LKD750 | 1LF-LKD850 |
| No.of Bottom | 7 | 8(7+1) |
| Bottom No. | LK500M quick mount plowshares or LK500 plowshares | LK500M quick mount plowshares or LK500 plowshares |
| Working Width Per Bottom | 33-50cm | 33-50cm |
| Plough Point High | 195cm | 195cm |
| Bottom to Bottom Size | 100cm | 100cm |
| Plough Beam Specification | 160x160 square tube | 160x160 square tube |
| Support Beam Specification | 140x140 square tube | 140x140 square tube |
| Machine Working Width | 231-350cm | 264-400cm |
| (N.Weight) | 3300kg | 3600kg |
| Power Required | 320HP | 340HP |
